Engmattec - SAE 100R8 - Thermoplastic Wire Braid (04) 1/4" - 17400psi - Jacking Assembly - 2 Metres

Engmattec - SAE 100R8 - Thermoplastic Wire Braid (04) 1/4" - 17400psi - Jacking Assembly - 2 Metres

SKU H-R8-04-JK-EN-A-2
by Engmattec
$238.50
$238.50 - $238.50
$238.50
$185.00
$185.00 - $185.00
$185.00
Product Overview:

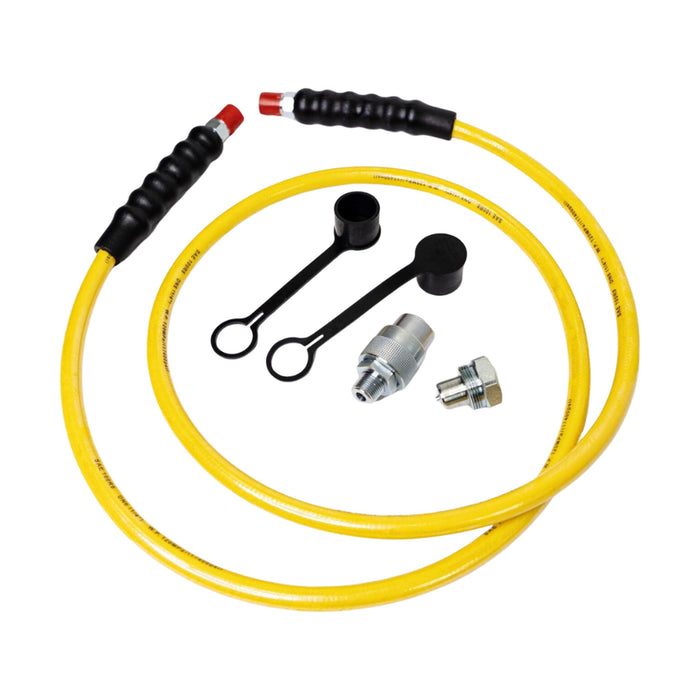

The ENGMATTEC SAE 100R8 thermoplastic wire braid hydraulic hose is designed for ultra-high-pressure applications up to 17,400 psi (1180 bar). This 2-metre hose is reinforced with heavy-duty steel and fitted with 3/8" NPT high-pressure fittings and screw-together couplers. Ideal for hydraulic presses, jacks, pullers, and industrial tooling, it includes bend restrictors for extended durability. The protective dust caps ensure reliable performance by preventing contamination, making it suitable for both portable and permanent hydraulic power units.
  • Ultra-High Pressure: Rated up to 17,400 psi (1180 bar).
  • Durable Construction: Steel reinforcement for heavy-duty use.
  • Extended Hose Life: Bend restrictors at both ends.
  • Secure Connection: Includes 3/8" NPT fittings and couplers.
  • Wide Application: Compatible with various hydraulic tools.
Specifications
Brand ENGMATTEC
Hose Type SAE 100R8 Thermoplastic Wire Braid
Hose Length 2 metres (80 inches)
Working Pressure 10,000 psi (600 bar)
Maximum Pressure 17,400 psi (1180 bar)
Burst Pressure 42,000 psi (2,900 bar)
Fittings 3/8" NPT male (both ends)
Couplers 3/8" High-Pressure Screw Together (1 male, 1 female)
Protective Features Bend restrictors, dust caps
Weight 3.00 kg
Applications Hydraulic presses, jacks, pullers, benders, rescue tools
Compatibility Fleet-Hydrol, Durapac, Enerpac, Power Team, Porta Power
